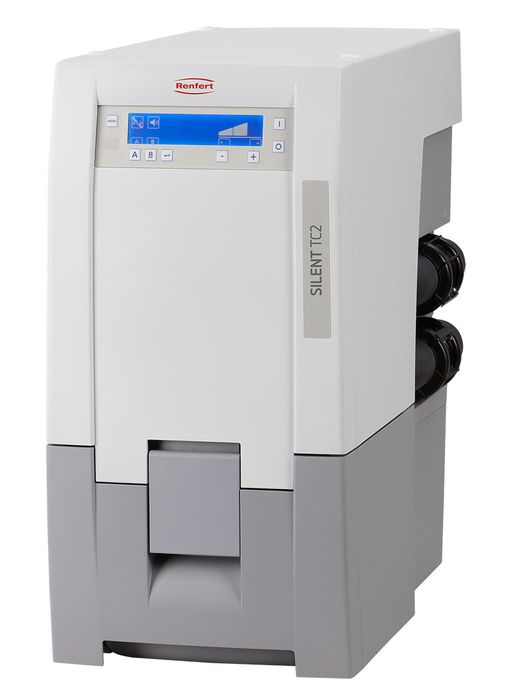

Silent TC2 240V

Stock Code:
R2936-0000

Description

Two workbench extraction.

Powerful, bag-free extraction unit with two independently controlled suction ports, automatic filter cleaning and long-lasting collector motor.

Advantages:

  • Consistent suction power thanks to automatic readjustment.
  • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed).
  • Low operating noise of max. 55 dB (A).


Details:

  • No follow-up costs due to bag-free dust collection.
  • Working without interruption due to an uncomplicated motor change within minutes.
  • Effective dust reduction using a high volume flow (approx. 4000 l/min.).

Technical data:
Permissible mains voltage / frequency = 220–240 V, 50/60 Hz
Suction turbine power = 850 W (230 V)
Volume flow (max.) = 3980 l/min (2.34 ft³/s)
Max. depression = 281 hPa / 4.1 psi (230 V)
Filter quality = Class M according to EN 60335-2-69
Max. permitted connected load of the plug-in socket = 2000 W (230 V)
Total connected power = 2850 W (230 V)
Min./max. connection pressure = 4.5 bar (65 psi) / 8 bar (116 psi)
Number of suction hoses = 2
Sound pressure level (LpA) at max. volume flow = 55 dB (A)
Fill level dust collector = 7.0 l (1.85 gal)
Weight (empty) = 23 kg (50.7 lbs.)
Dimensions = (W x H x D) 285 x 535 x 540 mm (11.2 x 21.1 x 21.2")
Ø suction fittings interior = 45 mm (1.77")
Ø suction fittings exterior = 50 mm (1.97")
