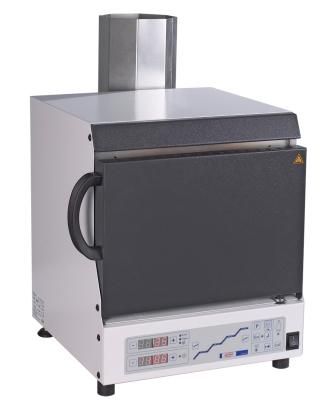

Magma Preheating Furnace 230V
Description
This furnace unifies all the main elements necessary for pre-heating, all in one machine. Apart from the top technology such as the Pt-RhPt temperature sensor, the four sided heating chamber and the hidden heating elements etc., the main emphasis was placed upon the ergonomics, so that operation, programming and ventilation is the best possible.
*NB: Magma Preheating Furnace requires a 15A plug
Secure investment
- This furnace is covered by a 3 year guarantee (except for the thermal sensor, a consumable part). The guarantee even covers the heating elements (to maximum 6000 operating hours).
- Every single furnace is "burnt in" before leaving the factory, which means that it is 100% tested and can be placed in operation immediately.
- Full benefit of the Renfert guarantee service: 3 year guarantee, 10-year spare parts supply and much more. Heats to 900°C in 60 minutes with evenly distributed temperature
- Heating from four sides means fast, even heating and quick compensation for temperature differences.
- The one-piece firing chamber prevents heat loss at points where it would otherwise occur because of joints.
- The distribution of the heating coils is denser in thermally difficult areas to guarantee even temperature distribution (comparable to an air circulation oven).
Accurate and reliable
- The PtRh-Pt temperature sensor offers maximum accuracy and service life.
- The displayed temperature is the actual temperature at the height of the casting rings.
- Heating coils integrated into the walls of the firing chamber are protected from aggressive gases and mechanical damage. Result: long life.
Spacious, ergonomically and clean
- The oven has space for 9 × size 3, 4 × size 6 or 3 × size 9 casting rings.
- Casting rings can be placed on the special ceramic fibre oven door when removing them.
- Various functions guarantee that the wax will flow to the rear where it is burnt off
- Optionally by the high-performance catalytic converter - and removed through the exhaust and not through the door: no unpleasant odours, a clean oven, clean air with the inward tilted ceramic plate and the adjustable angle of inclination.
Simple, convenient and flexible operation
- It can be operated immediately without learning time with the intuitive icon-controlled programming
- Direct input of desired casting time (date and time) eliminates the need for calculation
Weight Magma: 33.5 kg
Size: 430 x 500 x 450 mm (16.93 x 19.69 x 17.72 inch)
