Silent Power CAM EC 240V

Stock Code:
R2939-0000

Description

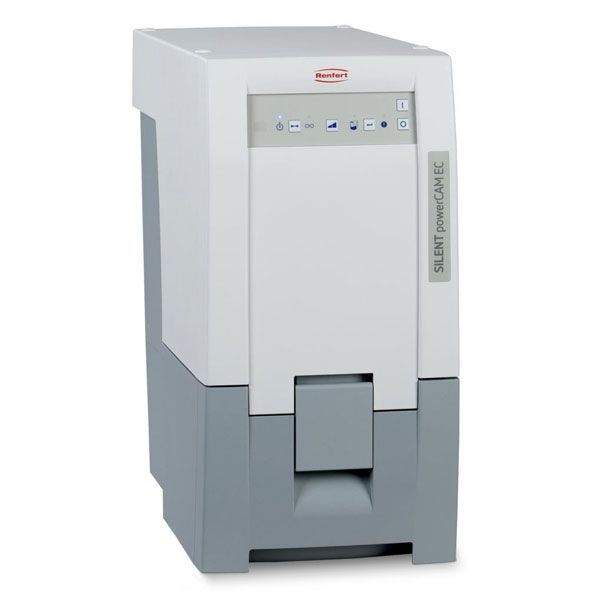

220-240 V, 50/60 Hz - Device extraction unit for CAM systems

Function & Performance
  • Powerful extraction unit with EC motor, bag-free, fine filter technology, suitable for frequently used CAM systems
Advantages
  • Reliable production process thanks to a low-maintenance EC motor with 5,000 guaranteed operating hours
  • Suitable for CAD-CAM systems requiring high suction performance due to a powerful motor with a max. flow rate of 4000l/min
  • High operating comfort thanks to bidirectional communication with the CAM system via PLC control

Details
  • No dust bag change due to bag-free fine filter technology, including automatic filter cleaning
  • Safe disposal of fine milling dusts with the aid of a disposal bag
  • Very low operating noise of 54.3 dB(A)

Technical data - SILENT powerCAM EC 220-240 V, 50/60 Hz
Permissible mains voltage / frequency220-240 V, 50/60 Hz
Suction turbine power1610 W (230 V)
Volume flow (max.)3984 l/min (2.34 ft³/s)
Max. depression257 hPa (3.2 psi)
Filter qualityClass M according to EN 60335-2-69
CAM interfaceRJ 45 socket
SPS: Input signal / Output signal2x inputs / 2x outputs, turbine suction level 1, suction level 2, turbine off, filter cleaning/status information
LpA* (at max. volume flow)54,3 dB(A)
Weight (empty)approx. 18 kg (39.7 lbs)
Dimensions (W x H x D)270 x 535 x 540 mm (10.6 x 21.1 x 21.2")
Suction fittings, interior / exteriorConnection only inside possible diameter 42 mm
Fill level dust drawerapprox. 7L (1.85 gal)
* sound pressure level
