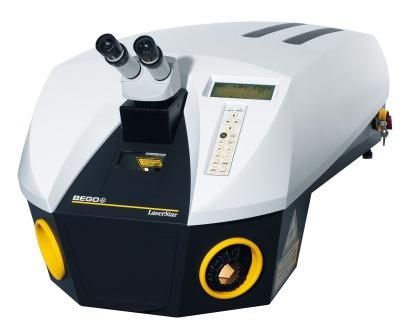

Bego Laser Star T Plus Bench Top Laser

Stock Code:
BG26405

Description

The compact power laser from BEGO

• Compact and powerful, with user-friendly features

• Precision welding ensured by controllable welding energy with pulse time, charging voltage and focus adjustment

• Ergonomic design and positioning of the controls directly in the field of vision for convenient and fatigue-free working

• Simple operation with a large colour touch display and intuitive menu navigation

• Pulse shaping for high-strength stress- and crack-free joints

• Eco mode switches off all unnecessary components in idle mode and reduces operating costs

• The external Ventus extraction unit efficiently removes welding fumes from the welding chamber, ensuring maximum safety at the workplace

Technical data

Laser type

Nd: YAG

Wavelength

1064 nm

Pulse energy

60 joules

Pulse length

0.3- 50 ms

Rated power

60 W

Pulse peak output

max. 8 KW

Spot diameter

0.3 mm to 2.0 mm

Pulse frequency

Single pulse, 1- 50 Hz

Pulse shapes

4 fixed, 12 variable available

Microscope

4H Jena with TrueView function 16x (visible magnification)

Aiming device

Reticle in microscope

Welding parameters

can be set both inside and outside the welding chamber

Inert gas nozzles for argon

1 flexible, 1 fixed

Illumination of welding chamber

LED ring light, adjustable

Welding fume extraction

Integrated connection for an external extraction system, such as BEGO Ventus

Water/air cooling

with ion filter, integrated

Power supply

230 V/50 Hz, 1 phase, 13 A, 50 Hz or 110 V/60 Hz; 1 phase, 16 A

Weight

approx. 55 kg

Height

505 mm

Width

521 mm

Depth

755 mm
