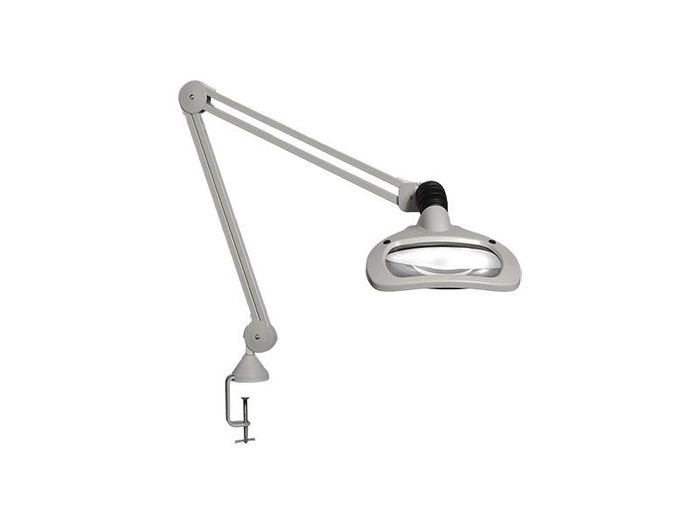

Wave LED Magnifier 1.9 x + Clamp

Stock Code:
L025960

Description

WAVE LED

  • High performance LED magnifier task light
  • LEDs switchable for 3D or shadow-free illumination
  • Standard 1.9x magnification accessories for 2.9x, 3.4x or 4.3x

OVERVIEW

Building on what already is one of the best magnification systems in the world, the WAVE LED offers an even greater field of view and the latest in LED technology. It has shadow-free magnification with light from both sides, as well as three-dimensional magnification with light coming from either the left or right. The 3D feature is especially welcome when working with circuit boards and similar delicate objects. With its rectangular lens, WAVE LED is also suitable for reading purposes.
Standard version with 3.5 dioptre lens (1.9X) and table clamp. Additional lenses available on request.

PRIMARY SUITABILITY

WAVE LED is particularly suited to the tasks required in industrial applications, for jewellers and as a reading light for the visually impaired.

DESIGN

Steel arm, shade in aluminium. Standard with 3.5 dioptre (1.9x magnification) crown glass lens, 175x108mm. For additional magnification, a secondary 4D, 6D or 10D lens can be attached for 2.9x, 3.4x or 4.3x magnification respectively.

OPTIC

Supplied with 2 x integrated 6W LED modules, individually switchable.

ELECTRICAL

Step dimming (0-50-100%) and automatic shutoff after 4 or 9 hours.

LIGHT SOURCE

Standard in 4000K neutral white LED array, CRI =80.

MAGNIFICATION

188% (1.9X), Focal Length - 285mm

MOUNT

AH Table Clamp

.
